Index Basic-D V5 Embosser

£2,940.00 Inc. VAT £2,450.00 Excl. VAT

Get Pre-Approved
Fast check - won't affect your credit rating.
Product Description

Basic-D V5 is a compact and powerful tractor-fed Braille printer as it has always been; but now it’s available with new modern features like Wi-fi connection, embossing from USB memory and braille printing from mobile devices.

Please note that due to manufacturing delays orders for this product will take approximately 6 weeks to be delivered.

Basic-D V5 is a compact and powerful tractor-fed Braille printer as it has always been; but now it’s available with new modern features like Wi-fi connection, embossing from USB memory and braille printing from mobile devices.

For years; Basic-D has been the most sold braille embosser in the world.

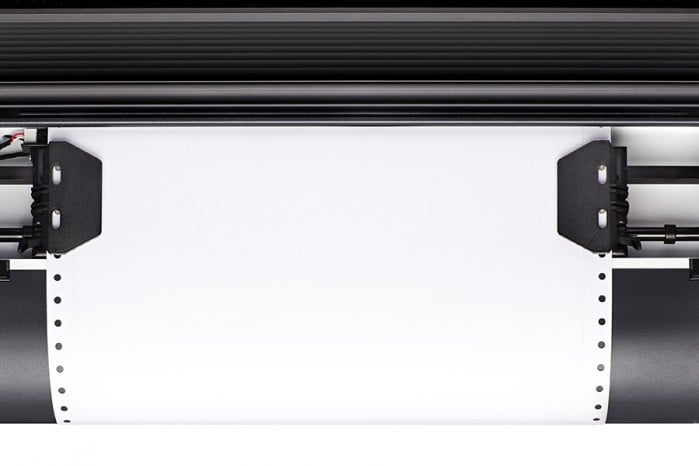

It uses fan-folded paper to produce single or double-sided braille.

  • Compact size
  • 100 characters per second
  • Print from portable devices
  • Braille and text labeled control panel
  • Tractor-fed

An even better Basic-D

Though the physical appearance has not changed, the Basic-D V5 has been updated to include all the latest Braille techniques and compatibility with mainstream technology.

Region defined layouts

Select and save region specific layouts or operate using 1-9 layout options including user defined.

Horizontal & Vertical Braille printing

Emboss Braille horizontally or vertically (sideways) on the page using the Basic-D V5 Braille embosser.

Light to sharpen the design

Light is an important design component in all V5 embossers and a hallmark for its technology level. It both guides the user interface and decorates the embosser.

Common features

An enjoyable user interface

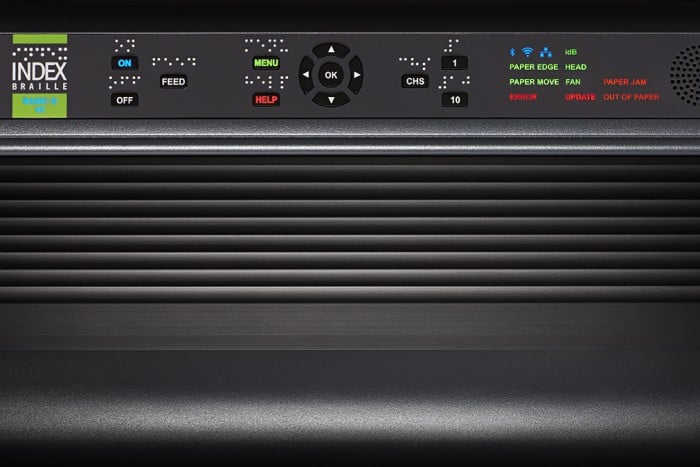

The control panel is a local user interface which allows the user to interact with the braille embosser and provides complete embosser control.

Emboss & manage from portable devices

Index Braille V5 embossers are compatible with portable devices. With the use of your portable device and Index’s own idB (free), endless braille embossing options are available directly from your smart phone, tablet or portable PC.

Even better, braille quality

The V5 solenoids (hammers) offer even better braille dot quality, a longer life cycle, higher embossing speed and lower power consumption.

idB : Index-direct-Braille

idB is a direct braille printing application built in the V5 braille embosser. It is available free of charge and compatible with Windows, Mac and Linux computers.

Braille

Embossing Speed: 100 CPS
Braille Font: 2.5mm
Tactile Resolution: 50 dpi
Forming Method: 13 hardened hammers/anvils

Paper

Type: Tractor Feed
Paper Weight: 120 – 180 gsm
Paper Width: 100-230mm
Paper Length: 25-431mm

Communications

USB: Yes
Memory Stick: Yes
Wi-Fi: Yes
Ethernet: Yes
Bluetooth: Yes
Drivers: Available for Windows, Mac and Linux
Configuration: Via Web Interface

Electrical

Voltage: 100-240V AC
Power Max: 140W
Power Standby: 5W

WIDTH (CM): 52
DEPTH (CM): 26
HEIGHT (CM): 13
MANUFACTURER: Index
ACCESSORY: No

Additional information

Weight 7.6 kg
Dimensions 26 × 52 × 13 cm
